2.2kw 60Bags/Min Dried Persimmon Granular Packing Machine

Basic Information
Place of Origin: GUANGDONG, CHINA
Brand Name: Foshan Jinyu Intelligent Machinery
Certification: SGS,CE
Model Number: JY-420A
Minimum Order Quantity: 1 set
Price: $22000-23000
Packaging Details: Plastic film+wooden case, about 11cbm
Delivery Time: 25-30 working days
Payment Terms: T/T, Western Union,Cash
Supply Ability: 100 sets per month
Detail Information
Product Name: Dried Persimmon Granular Packing Machine With Weighing Material: Full Stainless Steel With 304 Food Grade Material
Packing Speed: 5-60bags Per Min Bag Width: 50mm To 250mm
Bag Length: 80mm To 400mm Packing Range: 500-2000g
Function: For Packing Dried Persimmon Accurancy: ±1-3% (depends On Product's Nature)
High Light:

Dried Persimmon Granular Packing Machine

,

60Bags/Min Granular Packing Machine

,

2.2kw Weighing Packing Machine


Product Description

Dried Persimmon Granular Packing Machine With Weighing



FREE for service we offer:

1. Offer sample packing service

2. Offer related product packing video

3. Offer customized professional packing solution

4. Offer service for irregular visits and equipment maintenance

5. Offer pre-sales and after-sales service

6. Offer one-year warranty, lifetime service

7. Offer and help service of booking roll film

8. Offer installment video, teaching video and maintain video



Feature

  1. PLC control with stable, reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting , finished packing in one operation.
  2. Circuit boxes for pneumatic control and power control are separate. Low noise and the circuit is more stable.
  3. Using film-pulling with vacuum double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.
  4. Double servo control, high precision orientation, size more nicety.
  5. External film releasing mechanism: simpler and easier installation of packing film.
  6. Adjustment of bag deviation just needed to be control the touch screen. Operation is very simple .
  7. Close down type mechanism , defending powder into inside of machine.


Application score
      It’s suitable for using in packing the high accuracy and easy fragile materials and granular ,such as: puffy food. crispy rice, jelly, candy, pistachio, apple slices, dumpling, chocolate , pet food, small hardware, Medicine, peanuts ,nuts , cashew nuts, roasted products etc.

Specification:

Machine model JY-420 JY-520
Bag length 80-320mm(L) 80-420mm(L)
Bag width 50-200mm(W) 50-250mm(W)
Max width of roll film 420mm 520mm
packing material OPP/CPP,OPP/PE,PET/PE
Packing speed 5-60bags/min 5-50bags/min
Measuring range 150-1500ml 150-2000ml
Power voltage 220V 50/60hz 2.2kw 220V 50/60hz 2.5kw
Machine weight 500kg 550kg
Machine dimension (L)1388×(W)1116×(H)1536mm (L)1440×(W)1216×(H)1796mm

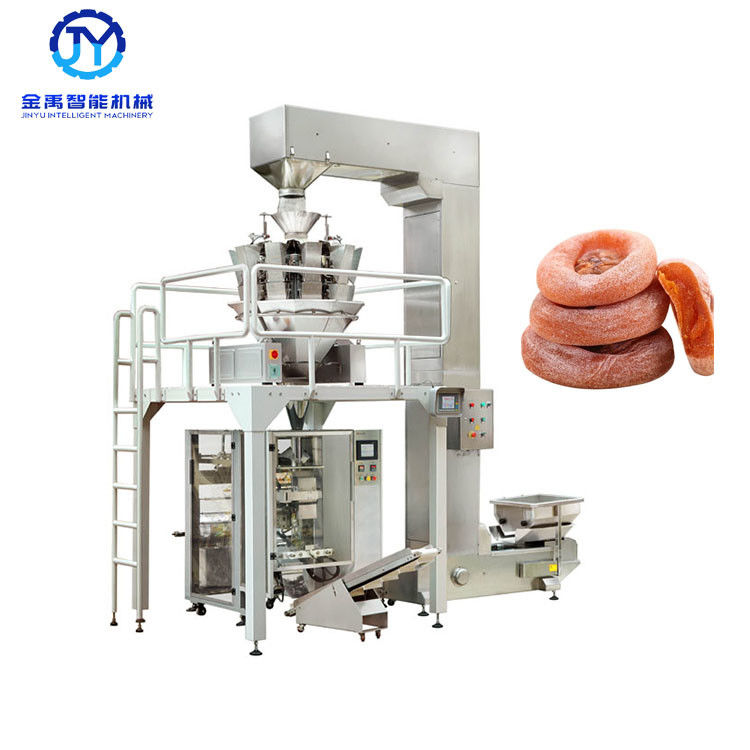

Machine details of Dried Persimmon Granular Packing Machine With Weighing
2.2kw 60Bags/Min Dried Persimmon Granular Packing Machine 0




Sample photos of Dried Persimmon Granular Packing Machine With Weighing
2.2kw 60Bags/Min Dried Persimmon Granular Packing Machine 1



Delivery of Dried Persimmon Granular Packing Machine With Weighing
2.2kw 60Bags/Min Dried Persimmon Granular Packing Machine 2

Our advantage:
1. Free consultation service before, during, and after sales;
2. Free project planning and design services;
3. Free debugging of equipment until everything is functional;
4. Free management of equipments' long distance shipping;
5. Free training of equipment maintenance and operating personally;
6. Free new production techniques and formulas;
7. Provide one year complete warrantee and lifetime maintenance service.
