| Place of Origin: | GUANGDONG,CHINA |
|---|---|
| Brand Name: | JINYU |
| Certification: | SGS,CE |
| Model Number: | JY-350XD |
| Minimum Order Quantity: | 1 SET |
| Price: | Negotiated |
| Packaging Details: | Plastic film+ wooden case, about 3 cbm |
| Delivery Time: | 15 working days delivery time |
| Payment Terms: | T/T, Western Union,Cash |
| Supply Ability: | 100 sets per month |
| Product Name: | Horizontal Packing Machine For Washing Dishes Gloves With Auto Counting | Function: | Design For Washing Dishes Gloves |
|---|---|---|---|
| Packing Speed: | 60bags/min | Material: | 304 Stainless Steel, Carbon Steel Body |
| Bag Width: | 5cm-16cm | Bag Length: | 100mm-longer (depends On Product) |
| Delivery Time: | About 15-20 Working Days | Drive Type: | Electric |
| High Light: | gloves packaging machine,pillow packaging machine |
||

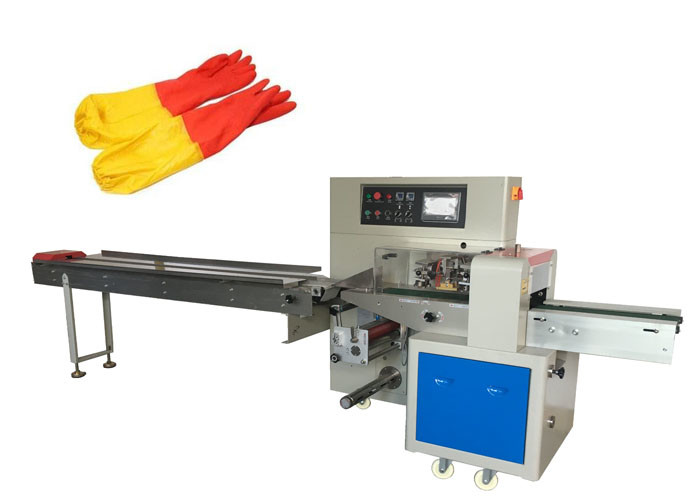

Horizontal Packing Machine For Washing Dishes Gloves With Auto Counting
Feature:
1.3 Servo motors , PLC controller , flexible bag length setting and cutting , saving time film.
2.Touchable human –machine operation , convenient and quick parameter setting.
3.Self diagnosis failure function , clear failure display.
4.High sensitivity optical electrical color mark tracking and digital input cut position which makes the sealing and cutting more accurate.
5.Independent control for movement of center sealing part and end sealing part, to meet different product height
6.Stopping the machine in selected position , no , sticking to the knife and no waste packing film.
7.Simple driving system , reliable working , convenient maintenance.
8.All control in one touch screen, user-friendly and easy operation
9.Automatic sense material length , automatic packaging products , no product no packaging , don’t need to adjust the bag length.
10. Without empty bag and cutting bags based on sensors
Optional device:
1.Date coder 2.Automatic punching Device 3.Full Stainless 4.Large Touch Screen 5.Air filling device 6.Release the air 7.No empty bag function 8.Customized sealing patterns and notch 9.Automatic feeder 10. Automatic feeding device.
Application:
For packing household gloves, rubber gloves, industrial gloves, labor gloves, safety gloves etc.
Specification:
| Model | JY-350XD | JY-450XD | JY-600XD | JY-700XD |
| Film width | Max. 350mm | 450mm | 600mm | 700mm |
| Bag length | 100~400mm | 100-450mm | 120-500mm | 120-500mm |
| Bag width | 50~160mm | 50-180mm | 100-280mm | 100-330mm |
| Product height | Max. 60mm | max.80mm | max.80mm | max.80mm |
| Film roll diameter | Max. 320mm | |||
| Packing speed | 10~80bag/min | 30-150bags/min | 30-150bags/min | 30-150bags/min |
| Powder | 220V,50/60Hz,2.8KW | 220V 50/60HZ 2.8KW | 220V 50/60HZ 2.8KW | 220V 50/60HZ 2.8KW |
| Dimension | 4020×720×1320mm | 4020x820x1450mm | 4020x920x1460mmm | 4020x980x1480mm |
| Machine weight | 550Kg | 580kg | 610kg | 680kg |

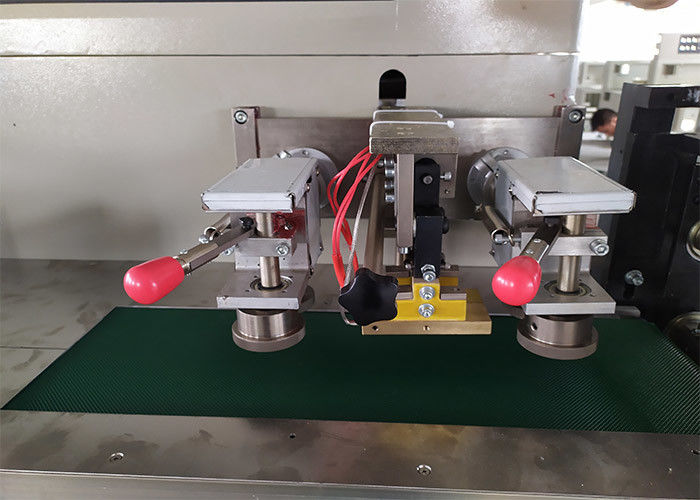

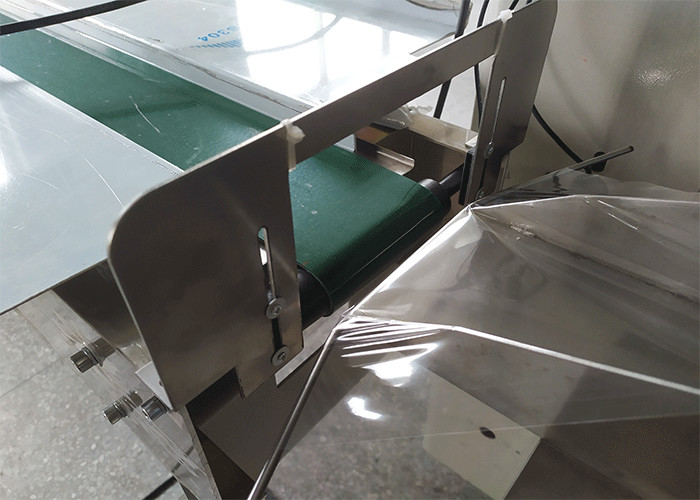

Machine details of Horizontal Packing Machine For Washing Dishes Gloves With Auto Counting:

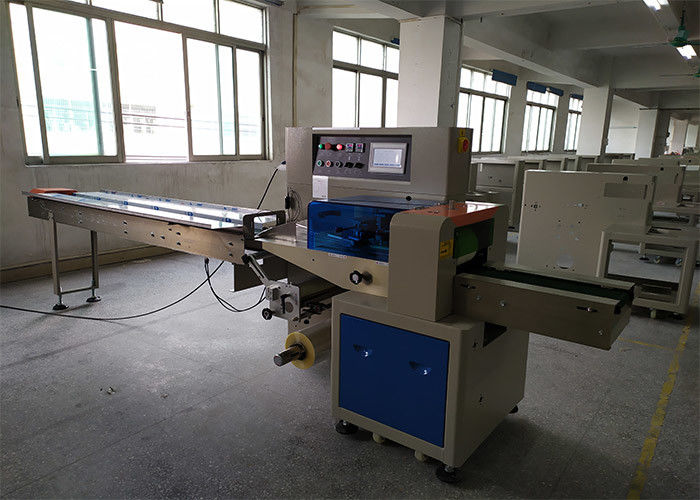

Sample photos of Horizontal Packing Machine For Washing Dishes Gloves With Auto Counting:
Delivery of Horizontal Packing Machine For Washing Dishes Gloves With Auto Counting:
Over advantage:
1. Free consultation service before, during, and after sales;
2. Free project planning and design services;
3. Free debugging of equipment until everything is functional;
4. Free management of equipments' long distance shipping;
5. Free training of equipment maintenance and operating personally;
6. Free new production techniques and formulas;
7. Provide 1 year complete warrantee and lifetime maintenance service
