| Place of Origin: | Guangdong , China |
|---|---|
| Brand Name: | JINYU |
| Certification: | CE, SGS |
| Model Number: | JY-250 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiated |
| Packaging Details: | Plastic film+ wooden case packing, about 3-4cbm |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, T/T, Western Union,cash |
| Supply Ability: | 100 sets per month |
| Product Name: | Pillow Packing Machine For Card Packing With Card Feeder Optional | Function: | Back Sealing Type |
|---|---|---|---|
| Packing Speed: | 40-200 Bags/min | Bag Width: | 30-110mm |
| Bag Length: | 100mm-330mm | Advantage: | Fast Speed Packing |
| Driven Type: | Electric | Packaging Material: | Plastic, Paper, Foil Roll Film |
| High Light: | flow packaging machine,automatic flow wrap machine |
||

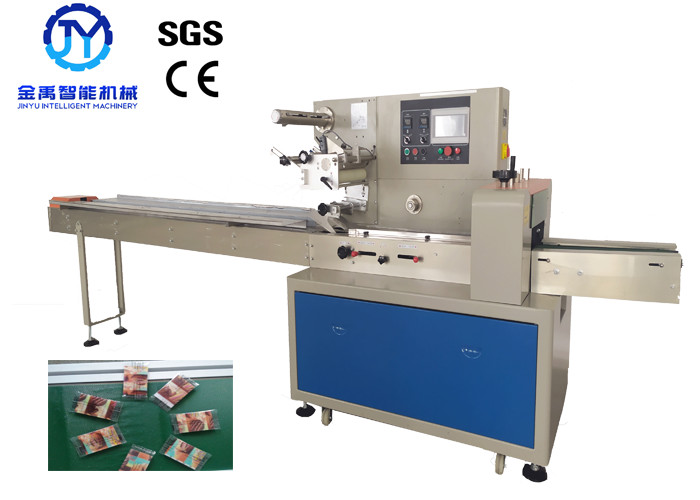

Pillow Packing Machine For Card Packing With Card Feeder Optional
Horizontal flow wrap machine is ideal for suppliers of products that must be packaged individually. Flow wrapping is a horizontal packaging process in which product enters the machinery and is wrapped in clear or printed film. The result is a tightly fitted flexible package with a horizontal back seal and end seal.
Feature:
1, Dual inventers control, bag length can be set and cut in one step, saving time and bags.
2, Temperature independent PID control, more suitable for packaging different materials.
3, Self failure diagnosis, clear failure display; positioned stop function, without knife sticking and film wasting.
4, Using double encoder enables stable performance.
5, Strengthened blade holder makes compact sealing
6, Optional air filling device achieves broad application.
7, Selected code system achieves credible Packaging.
8, Simple and automatic packaging achieves high speed and saving labor.
9, Optional material-cutting proof device, guarantee for using.
10, Multipurpose packaging, suitable for various packaging to similar type of product.
Parameter:
| Model | 250E/S | 250B/D | 320B/D | 350B/D | |
| Film width | Max.180mm | Max.250mm | Max.320mm | Max.350mm | |
| Bag length | 50-115mm or 45-90mm |
65-190mm/90-280mm 90-220mm/120-330mm |
65-190mm/90-280mm 90-220mm/120-330mm |
65-190mm /90-280mm 90-220mm/120-330mm |
|
| Bag width | 30-80mm | 30-110mm | 50-160mm | 50-160mm | |
|
Product’s height |
Max.35mm | Max.45mm | Max.55mm | Max.60mm | |
|
Packing speed |
60-330bags/min | 40-230bags/min | 40-230bags/min | 40-180bags/min | |
| Power | 220V 50/60HZ 2.4KW | 220V 50/60HZ 2.4KW | 220V 50/60HZ 2.6KW | 220V 50/60HZ 2.6KW | |
|
Machine dimension |
3770x670x1450 | 3770x670x1450 | 3770x720x1450 | 4020x770x1450 | |
|
Machine weight |
500kg | 500kg | 550kg | 580kg | |
Machine details:
Sample photos:
Delivery details:
Foshan JINYU Intelligent Machinery Co.,ltd is manufacturer company of integrating design, production and sales. We are focusing on production of the flow packaging machine and vertical packaging machine, researching and developing automatic feeding and packing system. For various customers, we meticulously offer installment and testing and technology service.
Our products are in leading of home and abroad, which promotes the development of industry. Our machines are widely using in food industry, medical industry, hardware industry, chemical industry, plastic industry, Agricultural products industry, daily necessaries industry, etc. JINYU Intelligent Machinery has a certain Influence and machines have been sold at home and abroad,
Our company pay attention to the cultivation of employees, R&D and innovation of products. We have own-self R&D technology team and spare parts production team, devote ourself to provide packing solution program, and offer strongly after sales service support. For home and aboard customers, we will offer installment test and operation training to every client. Longlife maintainance.
