| Place of Origin: | GUANGDONG,CHINA |
|---|---|
| Brand Name: | JINYU |
| Certification: | CE, SGS |
| Model Number: | JY-250XD |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiated |
| Packaging Details: | Plastic film+wooden case packing |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union,Cash |
| Supply Ability: | 80 set per month |
| Product Name: | Spoon , Knife , Fork Flow Packing Machine With Servo Motor Control | Advantage: | Reliable Running |
|---|---|---|---|
| Packing Machine: | 40-100 Bags/ Min ( Depends On The Speed Of Manual Feeding | Bag Width: | 100-280mm |
| Bag Length: | 160-500mm (can Be Longer With Servo Motor) | Machinery Color: | White And Orange |
| Material: | Stainless Steel And Carbon Steel | Machine Size: | About 4cbm |
| High Light: | flow packaging machine,flow wrapping machine |
||

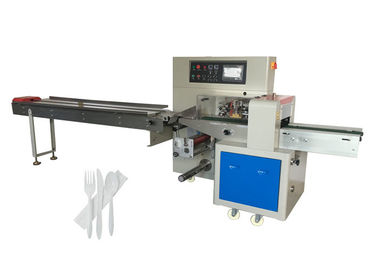

Spoon , Knife , Fork Flow Packing Machine With Servo Motor Control
Feature:
1. 3 Servo motors , PLC controller , flexible bag length setting and cutting , saving time film.
2. Touchable human –machine operation , convenient and quick parameter setting.
3. Self diagnosis failure function , clear failure display.
4. High sensitivity optical electrical color mark tracking and digital input cut position which makes the sealing and cutting more accurate.
5. Separete PID control to temperature , suitable for various packing materials.
6. Stopping the machine in selected position , no , sticking to the knife and no waste packing film.
7. Simple driving system , reliable working , convenient maintenance.
8. All the controls is are achieved by software , convenient for function adjusting and upgrading.
9. Automatic sense material length , automatic packaging products , no product no packaging , don’t need to adjust the bag length.
Optional device:
1. Date coder 6. Release the air
2. Automatic punching Device 7. No empty bag function
3. Full Stainless 8. Customized sealing patterns and notch
4. Large Touch Screen 9. Automatic feeder
5. Air filling device 10. Automatic feeding device
Specification:
| Model | 250XD | 350XD | 450XD | 600XD |
| Film width | Max.250mm | Max. 350mm | 450mm | 600mm |
| Bag length | 65~280mm | 100~400mm | 100-450mm | 160-500mm |
| Bag width | 30~110mm | 50~160mm | 50-180mm | 100-280mm |
| Product height | Max.45mm | Max. 60mm | max.80mm | max.80mm |
| Film roll diameter | Max. 320mm | |||
| Packing speed | 30~180bag/min | 30~180bag/min | 30-150bags/min | 30-150bags/min |
| Powder | 220V,50/60Hz,2.8KW | 220V,50/60Hz,2.8KW | 220V 50/60HZ 2.8KW | 220V 50/60HZ 2.8KW |
| Dimension | 4020x700x1260mm | 4020×720×1320mm | 4020x820x1450mm | 4020x920x1460mmm |
| Machine weight | 500Kg | 550Kg | 580kg | 610kg |
Machinery details of Spoon , Knife , Fork Flow Packing Machine With Servo Motor Control
Over advantage:
1. Free consultation service before, during, and after sales;
2. Free project planning and design services;
3. Free debugging of equipment until everything is functional;
4. Free management of equipments' long distance shipping;
5. Free training of equipment maintenance and operating personally;
6. Free new production techniques and formulas;
7. Provide 1 year complete warrantee and lifetime maintenance service
