| Place of Origin: | GUANGDONG,CHINA |
|---|---|
| Brand Name: | JINYU |
| Certification: | SGS,CE |
| Model Number: | JY-450W,600W |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiated |
| Packaging Details: | Plastic film+wooden case, about 4-5 cbm |
| Delivery Time: | 15-20 work days |
| Supply Ability: | 80 sets/month |
| Product Name: | Full Automatic Steak Mutton Meta Frozen Food Packaging Machine | Material: | 304 Stainless Steel, Carbon Steel Body |
|---|---|---|---|
| Function: | For High Product Packing, Tray Packing | Packing Speed: | 20 To 80bags/min |
| Bag Width: | 30mm-160mm | Bag Length: | 110mm-450mm |
| Advantage: | Beautiful Performance, Stable | Delivery Time: | Within One Week |
| Highlight: | food tray sealing machine,industrial packing machine |
||

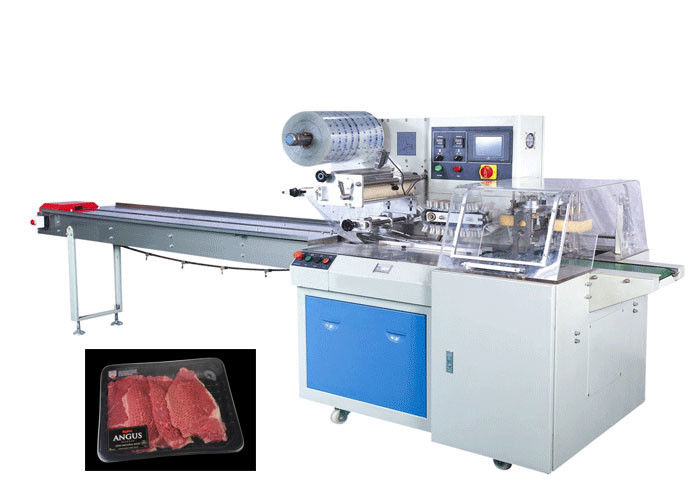

Full Automatic Steak Mutton Meta Frozen Food Packaging Machine
Feature:
Main performance and structure features:
1. Dual frequency conversion control ,bag length can be set and cut in one step,saving time and films.

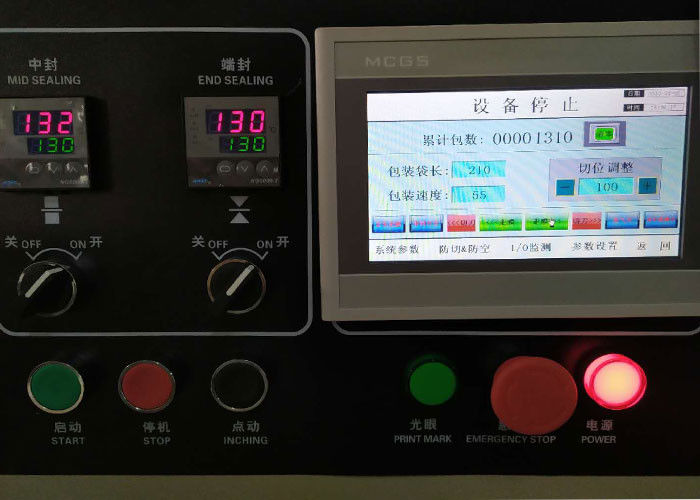

2. Colorful touch screen,easy and quick setting and operation.
3. Self diagnosis failure function,clear failure diaplay.
4. High sensitivity photoelectric eye color trace the bag,numerical input of cutting sealing position for extra accuracy.
5. The temperature of each seal is independent. PID control is suitable to various packaging materials.
6.Recoprocating type sealing device,filmer sealing,no wasting in mould sealing cutter.
7.Teminal sealing device,more beautiful bag shape,improving products level.
8. Positioning stop function without sticking knife, cutting and wasting envelope.
9. Simple driving system,reliable working,convenient maintenance.
10. All controls are implemented by software. It can install intermittent air device and spray alcohol device to implement adjusting functions immediately and upgrading technology to ensure it will never fall behind.
Applications
Suitable for packing regular objects such as frozen food, food with tray, pallet products , etc .
Parameter:
| Model | JY-350W | JY-450W | JY-600W |
| Film width | 350mm | 450mm | 600mm |
| Bag length | 110-330mm | 120-450 mm | 120-450mm |
| Bag width | 30-160mm | 50-160mm | 50-200mm |
|
Product’s height |
Max.70mm | Max.100mm | max.100mm |
|
Packing speed |
20-80bags/min | 20-80bags/min | 20-80bags/min |
| Power | 220V 50/60HZ 2.4KW | 220V 50/60HZ 3.2KW | 220V 50/60HZ 3.6KW |
|
Machine dimension |
3670x820x1410 | 4380x870x1000 | 4380x970x1500 |
|
Machine weight |
800kg | 900kg | 1000kg |
1. Free consultation service before, during, and after sales;
2. Free project planning and design services;
3. Free debugging of equipment until everything is functional;
4. Free management of equipments' long distance shipping;
5. Free training of equipment maintenance and operating personally;
6. Free new production techniques and formulas;
7. Provide 1 year complete warrantee and lifetime maintenance service.
