| Place of Origin: | GUANGDONG,CHINA |
|---|---|
| Brand Name: | JINYU |
| Certification: | CE, SGS |
| Model Number: | JY-250XD |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiated |
| Packaging Details: | Plastic film+wooden case packing |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union,Cash |
| Supply Ability: | 80 set per month |
| Product Name: | Horizontal Flow Toilet Soap Hotel Toothbrush Toothpaste Packing Machine | Advantage: | High Speed, Good Quality |
|---|---|---|---|
| Packing Machine: | 40-100 Bags Per Minute | Bag Width: | 30-110mm |
| Bag Length: | 100-330mm (can Be Longer With Servo Motor) | Machinery Color: | White And Orange |
| Material: | Stainless Steel And Carbon Steel | Machine Size: | About 3cbm |
| High Light: | flow packaging machine,automatic flow wrap machine |
||
Horizontal Flow Toilet Soap Hotel Toothbrush Toothpaste Packing Machine
Feature:
1. All the controls is are achieved by software , convenient for function adjusting and upgrading.
2. Separete PID control to temperature , suitable for various packing materials.
3. Self diagnosis failure function , clear failure display.
4. High sensitivity optical electrical color mark tracking and digital input cut position which makes the sealing and cutting more accurate.
5. Automatic sense material length , automatic packaging products , no product no packaging , don’t need to adjust the bag length.
6. Stopping the machine in selected position , no , sticking to the knife and no waste packing film.
7. Simple driving system , reliable working , convenient maintenance.
8. 3 Servo motors , PLC controller , flexible bag length setting and cutting , saving time film.
Optional device:
1. Date coder 6. Release the air
2. Automatic punching Device 7. No empty bag function
3. Full Stainless 8. Customized sealing patterns and notch
4. Large Touch Screen 9. Automatic feeder
5. Air filling device 10. Automatic feeding device
Specification:
| Model | 250XD | 350XD | 450XD | 600XD |
| Film width | Max.250mm | Max. 350mm | 450mm | 600mm |
| Bag length | 65~280mm | 100~400mm | 100-450mm | 160-500mm |
| Bag width | 30~110mm | 50~160mm | 50-180mm | 100-280mm |
| Product height | Max.45mm | Max. 60mm | max.80mm | max.80mm |
| Film roll diameter | Max. 320mm | |||
| Packing speed | 30~180bag/min | 30~180bag/min | 30-150bags/min | 30-150bags/min |
| Powder | 220V,50/60Hz,2.8KW | 220V,50/60Hz,2.8KW | 220V 50/60HZ 2.8KW | 220V 50/60HZ 2.8KW |
| Dimension | 4020x700x1260mm | 4020×720×1320mm | 4020x820x1450mm | 4020x920x1460mmm |
| Machine weight | 500Kg | 550Kg | 580kg | 610kg |

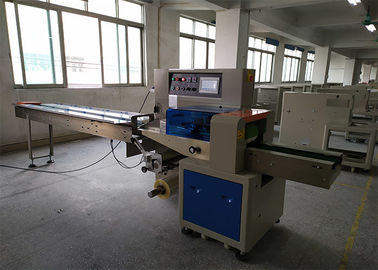

Machinery details of Horizontal Flow Toilet Soap Hotel Toothbrush Toothpaste Packing Machine :
Over advantage:
1. Free consultation service before, during, and after sales;
2. Free project planning and design services;
3. Free debugging of equipment until everything is functional;
4. Free management of equipments' long distance shipping;
5. Free training of equipment maintenance and operating personally;
6. Free new production techniques and formulas;
7. Provide 1 year complete warrantee and lifetime maintenance service
