| Place of Origin: | GUANGDONG,CHINA |
|---|---|
| Brand Name: | JINYU |
| Certification: | CE, SGS |
| Model Number: | JY-600X |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiated |
| Packaging Details: | Plastic film+wooden case packing |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union,Cash |
| Supply Ability: | 80 set per month |
| Product Name: | Flow Sponge , Clean Cloth , Scouring Pad Packing Machine With Steady Running | Advantage: | Steady Working |
|---|---|---|---|
| Packing Machine: | 40-100 Bags/ Min ( Depends On The Speed Of Manual Feeding | Bag Width: | 100-280mm |
| Bag Length: | 160-500mm (can Be Longer With Servo Motor) | Machinery Color: | White And Orange |
| Material: | Stainless Steel And Carbon Steel | Machine Size: | About 4cbm |
| High Light: | flow packaging machine,flow wrapping machine |
||

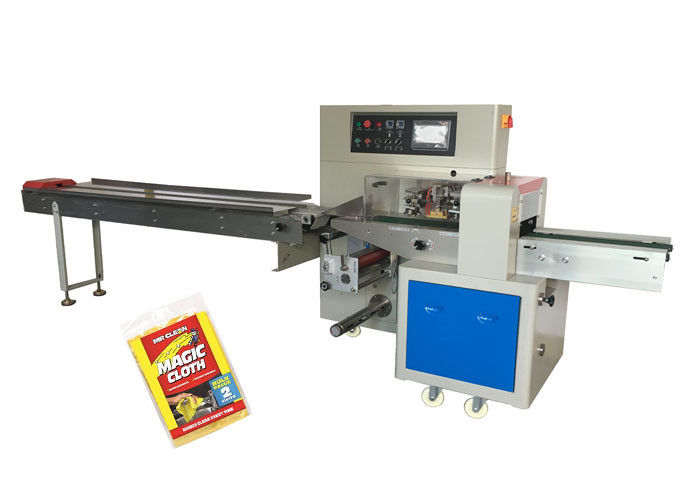

Flow Sponge , Clean Cloth , Scouring Pad Packing Machine With Steady Running
Feature:
1. Self diagnosis failure function , clear failure display.
2. Touchable human –machine operation , convenient and quick parameter setting.
3. 3 Servo motors , PLC controller , flexible bag length setting and cutting , saving time film.
4. High sensitivity optical electrical color mark tracking and digital input cut position which makes the sealing and cutting more accurate.
5. All the controls is are achieved by software , convenient for function adjusting and upgrading.
6. Stopping the machine in selected position , no , sticking to the knife and no waste packing film.
7. Automatic sense material length , automatic packaging products , no product no packaging , don’t need to adjust the bag length.
Optional device:
1. Date coder 6. Release the air
2. Automatic punching Device 7. No empty bag function
3. Full Stainless 8. Customized sealing patterns and notch
4. Large Touch Screen 9. Automatic feeder
5. Air filling device 10. Automatic feeding device
Specification:
| Model | 350XD | 450XD | 600XD | 700XD |
| Film width | Max. 350mm | 450mm | 600mm | 700mm |
| Bag length | 100~400mm | 100-450mm | 160-500mm | 120-500mm |
| Bag width | 50~160mm | 50-180mm | 100-280mm | 100-330mm |
| Product height | Max. 60mm | max.80mm | max.80mm | max.80mm |
| Film roll diameter | Max. 320mm | |||
| Packing speed | 10~80bag/min | 30-150bags/min | 30-150bags/min | 30-150bags/min |
| Powder | 220V,50/60Hz,2.8KW | 220V 50/60HZ 2.8KW | 220V 50/60HZ 2.8KW | 220V 50/60HZ 2.8KW |
| Dimension | 4020×720×1320mm | 4020x820x1450mm | 4020x920x1460mmm | 4020x980x1480mm |
| Machine weight | 550Kg | 580kg | 610kg | 680kg |

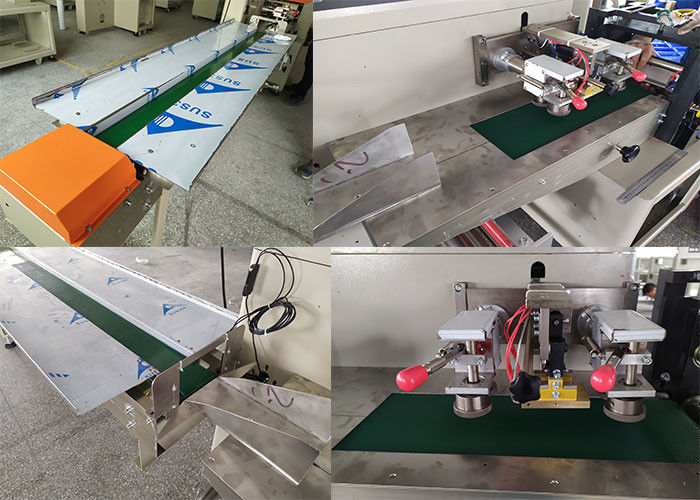

Machinery details of Flow Sponge , Clean Cloth , Scouring Pad Packing Machine With Steady Running:
Over advantage:
1. Free consultation service before, during, and after sales;
2. Free project planning and design services;
3. Free debugging of equipment until everything is functional;
4. Free management of equipments' long distance shipping;
5. Free training of equipment maintenance and operating personally;
6. Free new production techniques and formulas;
7. Provide 1 year complete warrantee and lifetime maintenance service
